EZVIZ Smart Home Intercom HP7 2-Family Kit-EU

EZVIZ HP7 2-Family Kit

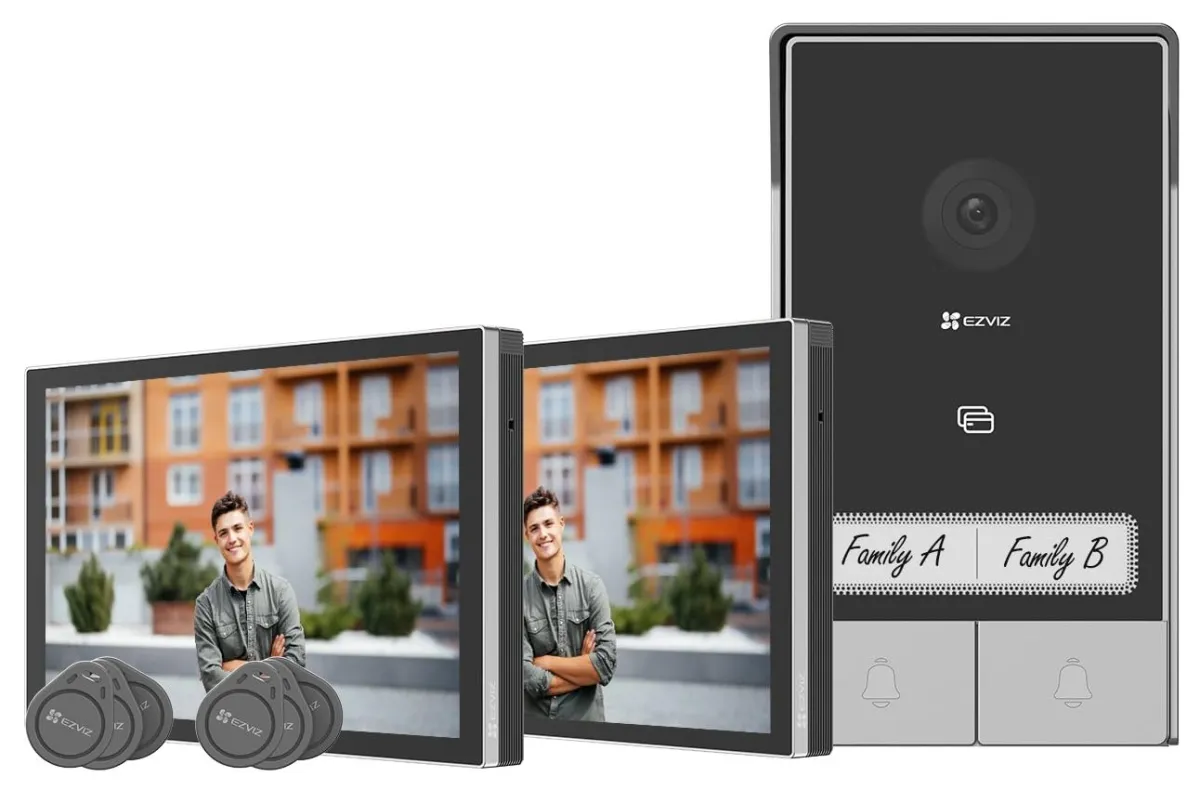

Door station (intercom) set with RFID chip reader, two 7" apartment monitors and accessories

The door station is equipped with two doorbells and a camera with a resolution of 2048 × 1296 px. The camera's viewing angle is 162° diagonally. The H.265 codec is used for image transmission. Of course, there is an integrated microphone, speaker and RFID access chip reader. The doorbell connection is implemented in 2-wire. The 7" touch monitor can be connected via Wi-Fi and has a microSD slot. Remote control via application, surface mounting, resistance to adverse influences according to IP65 certification. Smart functions include human figure detection, the possibility of generating a temporary visitor code or an optional voice change function to maintain privacy during communication.

Package contents: 2× monitor, 2× wall mount, 2× power adapter, 2× drilling template for monitor, 1× door intercom with weatherproof cover, 1× drilling template for intercom, 1× screwdriver, 6× RFID chip, 3× set of screws, 2× name tag, 2× cables with connectors, 2× DC 24V power connector cable

Door station

Camera: 1/2.7" CMOS with progressive scan

Lens

• fixed
• angle of view 162° diagonal

Resolution: 2048 × 1296 at 15 fps

IR illumination

• yes
• up to 6 m

RFID card reader

• yes
• 6 chips in the package

Interface

• 2× 2-wire for monitor
• 1× non-powered door contact
• 1× lock contact

Audio: integrated microphone and speaker

Number of bells: 2

Power: from monitor

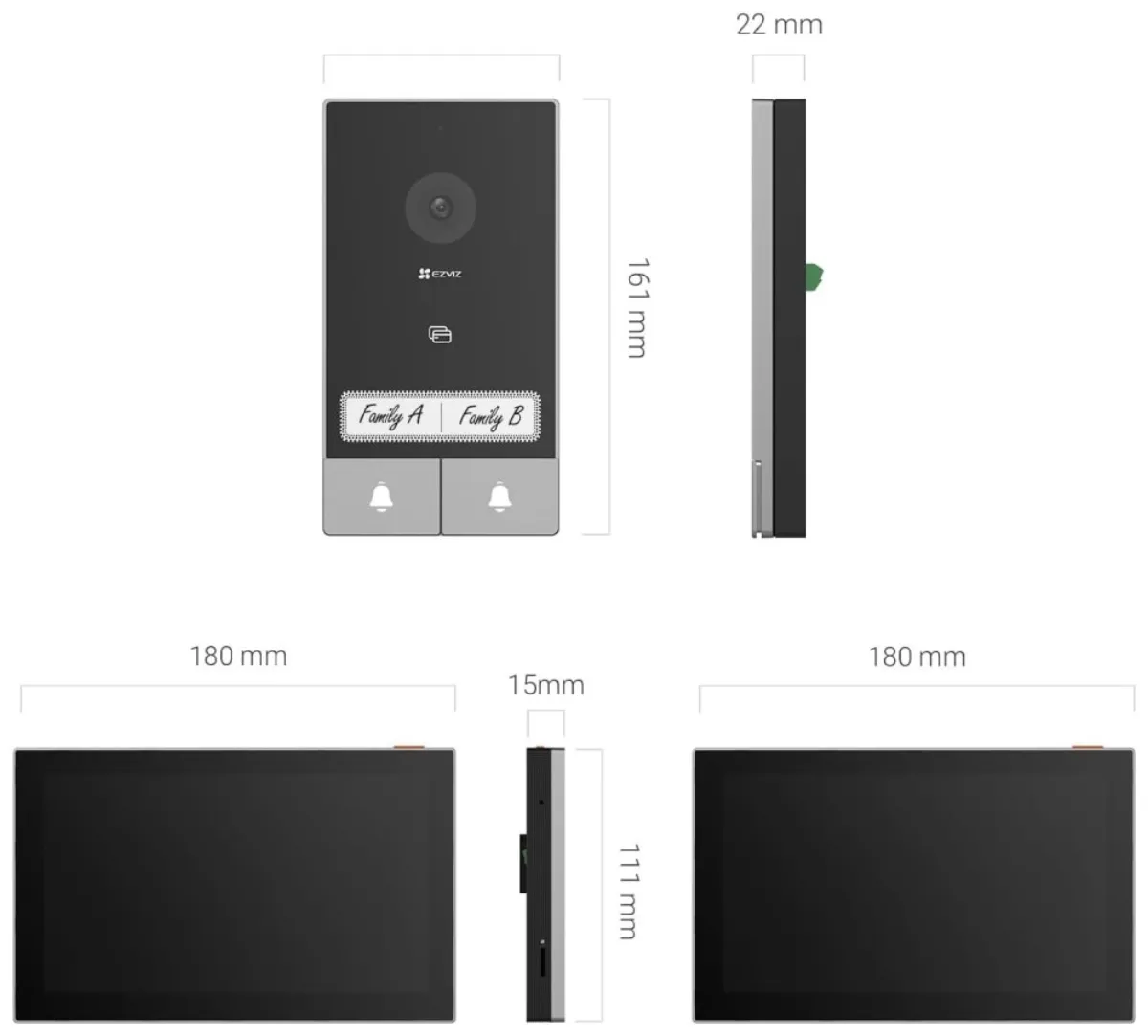

Dimensions: 161 × 87 × 20 mm

Color: black-silver

Home monitor

Display

• 7" touch
• resolution 1024 × 600 px

Interface

• 1× 2-wire for door station
• 1× microSD card slot (max. 512 GB)

Network: Wi-Fi 802.11b/g/n/ac

Video compression: H.265/H.264

Audio: integrated microphone and speaker

Power: DC 24 V/ 1 A (power supply included)

Dimensions: 180 × 111 × 15 mm

Weight: 855 g
